3037 TX
Maximum useful Power and Fuel efficiency

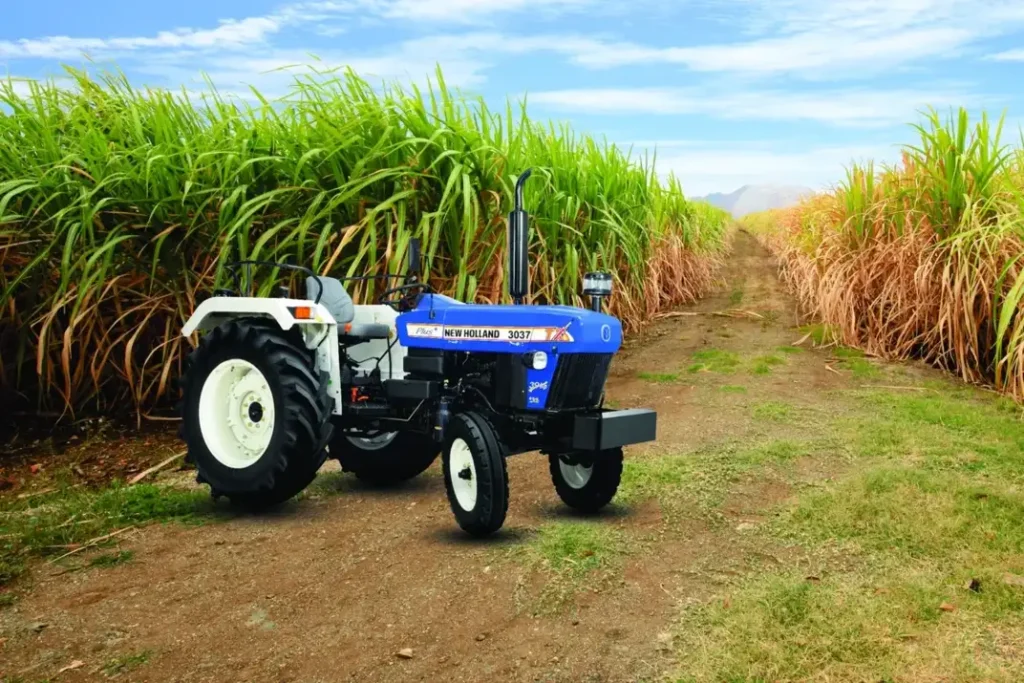

3037 TX
- Max useful power - 35 HP PTO Power
- Multi Speed & Reverse PTO/ Eptraa PTO*
- Independent PTO Clutch Lever*
- SOFTEK CLUTCH
- Fully Constant Mesh AFD Side Shift
- HP Hydraulic with Lift-O-Matic & 1800 kg Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
*Optional
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
3037 TX 2WD
Engine Model
T-IIIA, Simpson 325
Engine Power
29.08kW (39 HP)
3037 TX 4WD
Engine Model
T-IIIA, Simpson 325
Engine Power
29.08kW (39 HP)
Technical specifications
| 3037 TX 2WD | 3037 TX 4WD | |
| Engine | ||
| Engine Model | T-IIIA, Simpson 325 | T-IIIA, Simpson 325 |
| Engine Type | Naturally Aspirated | Naturally Aspirated |
| Engine Power | 29.08kW (39 HP) | 29.08kW (39 HP) |
| Rated RPM | 2000 | 2000 |
| Air Cleaner | ||
| Air Cleaner Type | Oil bath type with Pre-cleaner | Oil bath type with Pre-cleaner |
| Transmission | ||
| Clutch | Single/Double Clutch with IPTO Lever* | Single/Double Clutch with IPTO Lever* |
| Type | Constant Mesh AFD Side Shift | Constant Mesh AFD Side Shift |
| Gear Box | 8F+2R/ 8F+8R* | 8F+2R/ 8F+8R* |
| PTO | ||
| PTO Type | MultiSpeed PTO & Reverse PTO | MultiSpeed PTO & Reverse PTO |
| PTO HP | 37 HP (27.59 kW) | 37 HP (27.59 kW) |
| Hydraulics | ||
| Lift Capacity | 1800 kg High Precision Hydraulic | 1800 kg High Precision Hydraulic |
| Lift-O-Matic | Yes | Yes |
| Rear Axle | ||
| Rear Axle Type | Straight Axle Planetary Drive | Straight Axle Planetary Drive |
| Brakes | ||
| Brake Type | Oil Immersed Multi Disc Brake | Oil Immersed Multi Disc Brake |
| Steering | ||
| Information | Mechanical/Power Steering | Power Steering |
| Tyre | ||
| Front | 6 in x 16 in (152.4 mm x 406.4 mm), 6.5 in x 16 in (165.1 mm x 406.4 mm) | 8 in x 18 in (203.2 mm x 457.2 mm) |
| Rear | 13.6 in x 28 in (345.44 mm x 711.2 mm) | 13.6 in x 28 in (345.44 mm x 711.2 mm) |
| Electricals | ||
| Battery & Alternator | 75 Ah & 35 Amp | 75 Ah & 35 Amp |
| Dimension | ||
| Overall Length (mm) | 3590 | 3590 |
| Width (mm) | 1790 | 2080 |
| Height (mm) | 2260 | 2445 |
| Wheelbase (mm) | 1990 | 2000 |
| Ground Clearance (mm) | 390 | 360 |
| Weight (kg) | 1715 | 2020 |
| Fuel Tank Capacity (L) | 42 | 42 |
| Additional Features | ||
| Information | Heavy Duty Front Axle Support, Deluxe Driver Seat, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform, Polymer Fuel Tank | Synchro Shuttle, Paddy Special - Double Metal Face Sealing, Heavy Duty Front Axle Support, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform, Polymer Fuel Tank |
| Optional Features | ||
| Information | Synchro Shuttle 8F+8R, Remote Valve & Double clutch with IPTO, Potato Special Axle 48" & Paddy Special - Double Metal Face Sealing | Remote Valve, Double clutch with IPTO |
