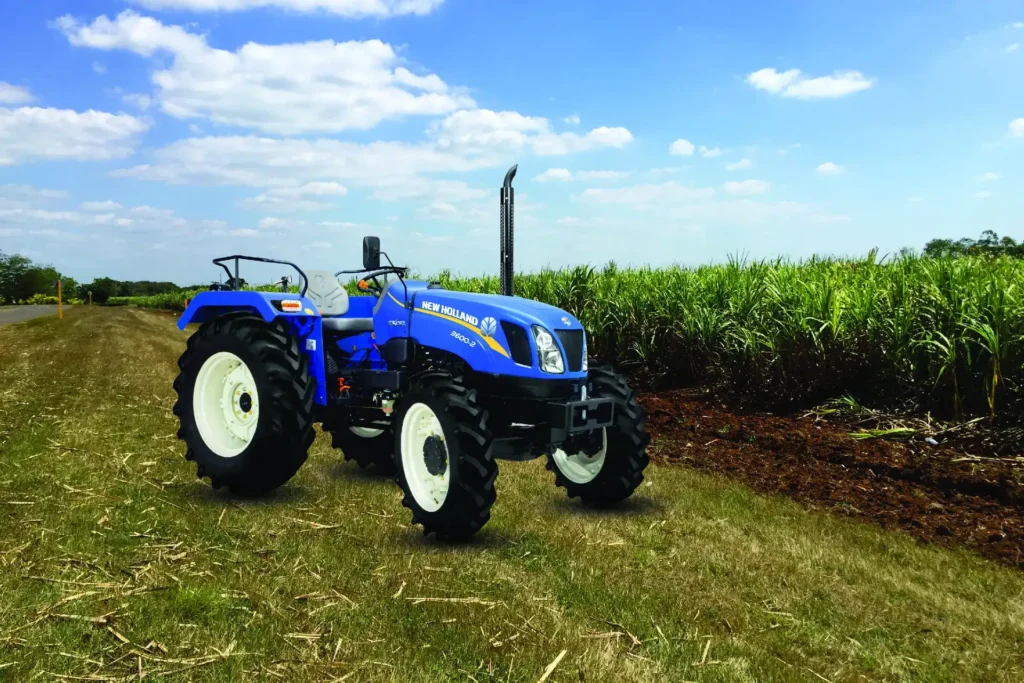

3600-2 EXCEL
New-Age Style and Technology for the Asli Hero!
3600-2 EXCEL
• FPT S8000 Engine
• Double Clutch with Independent PTO Lever
• 8F+2R, 8F+8R*, 16F+4R*, 16F+16R* Gearbox
• EPTRA PTO - 7 PTO Speed options
• HP Hydraulic 1800 Kg lifting capacity*
• Straight Axle Planetary Drive
• 4WD also available in MHD & STS Axle
*Optional
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
3600-2 Excel 2WD
Engine Model
FPT S8000 series
Engine Power
36.94 kW (49.5 HP)
3600-2 Excel 4WD
Engine Model
FPT S8000 series
Engine Power
36.94 kW (49.5 HP)
Technical specifications
| 3600-2 Excel 2WD | 3600-2 Excel 4WD | |
| Engine | ||
| Engine Model | FPT S8000 series | FPT S8000 series |
| Engine Type | Naturally Aspirated | Naturally Aspirated |
| Engine Power | 36.94 kW (49.5 HP) | 36.94 kW (49.5 HP) |
| Rated RPM | 2100 | 2100 |
| Air Cleaner | ||
| Air Cleaner Type | Dry Type Air cleaner | Dry Type Air cleaner |
| Transmission | ||
| Clutch | Double Clutch with Independent PTO Clutch Lever | Double Clutch with Independent PTO Clutch Lever |
| Gear Box | 8F+2R, 8F+8R*, 16F+4R* & 16F+16R* Constant Mesh AFD | 8F+2R, 8F+8R*, 16F+4R*, 16F+16R* Constant Mesh AFD |
| PTO | ||
| PTO Type | 540 Std & Rev PTO & Eptraa PTO* | 540 Std & Rev PTO & Eptraa PTO* |
| PTO HP | 46 HP (34.3 kW) | 46 HP (34.3 kW) |
| Hydraulics | ||
| Lift Capacity | High Precision (1800 kg) | High Precision (1800 kg) |
| Lift-O-Matic with DRC & Isolator Valve | Yes | Yes |
| Rear Axle | ||
| Rear Axle Type | Straight Axle Planetary Drive | Straight Axle Planetary Drive |
| Brakes | ||
| Brake Type | Real Oil Immersed Multi Disk Brake | Real Oil Immersed Multi Disk Brake |
| Steering | ||
| Information | Power Steering | Power Steering |
| Tyre | ||
| Front | 6.5 in x 16 in (165.1 mm x 406.4 mm), 7.5 in x 16 in (190.5 mm x 406.4 mm)* | 9.5 in x 20 in (241.3 mm x 508 mm), 9.5 in x 24 in (241.3 mm x 609.6 mm)* |
| Rear | 14.9 in x 28 in (378.46 mm x 711.2 mm), 15.9 in x 28 in (403.86 mm x 711.2 mm)* | 14.9 in x 28 in (378.46 mm x 711.2 mm), 15.9 in x 28 in (403.86 mm x 711.2 mm)* |
| Electricals | ||
| Information | 88 Ah Battery & 45 Amp Alternator | 88 Ah Battery & 45 Amp Alternator |
| Dimension | ||
| Overall Length (mm) | 3510 | 3610 |
| Width (mm) | 1810 | 1810 |
| Height (mm) | 2370 | 2370 |
| Wheelbase (mm) | 2115 | 2040 |
| Ground Clearance (mm) | 428 | 385 |
| Weight (kg) | 1945 | 2145 |
| Fuel Tank Capacity (L) | 60 | 60 |
| Factory Fitted Options | ||
| Information | LED Fender Lamps, Deluxe Driver Seat, Softek Clutch with Safety lock,Multisensing with DRC Valve, Tipping Trailer Pipe,Neutral Safety Switch,Potato Special Axle 48", Stabilizer Bar, Remote Valve, Synchro Shuttle, Speed Tech Gear Box, 90 Kg HD Front Bumper (2WD)/55kg FWC (4WD), Rear weight (32 Kg each side) & Double Metal Face Sealing. | LED Fender Lamps, Deluxe Driver Seat, Softek Clutch with Safety lock,Multisensing with DRC Valve, Tipping Trailer Pipe,Neutral Safety Switch,Potato Special Axle 48", Stabilizer Bar, Remote Valve, Synchro Shuttle, Speed Tech Gear Box, 90 Kg HD Front Bumper (2WD)/55kg FWC (4WD), Rear weight (32 Kg each side) & Double Metal Face Sealing. |
