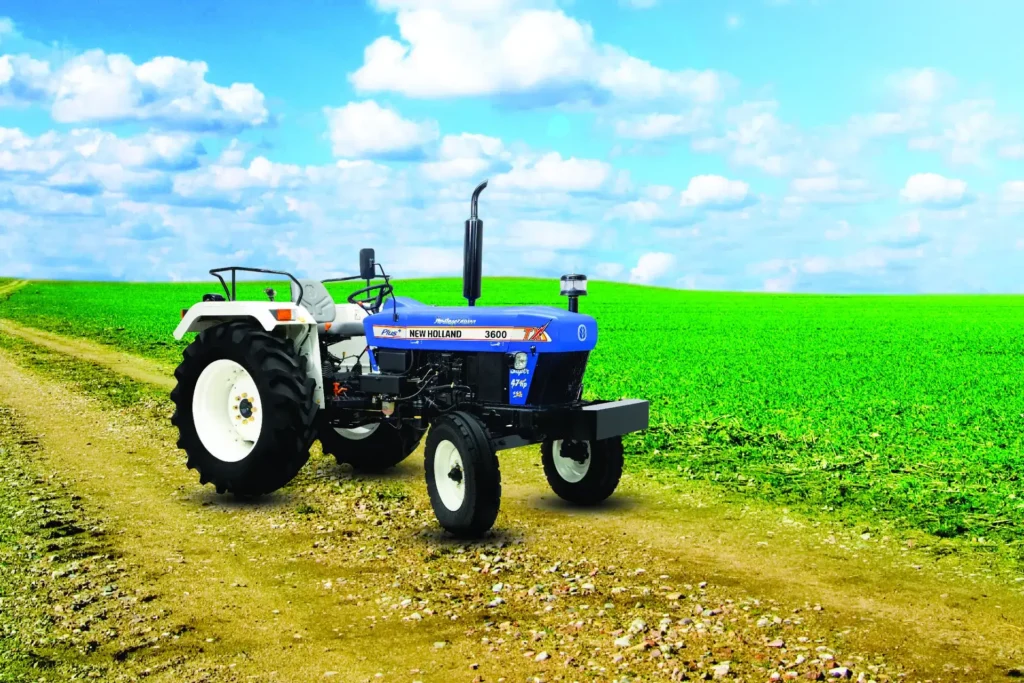

3600 TX SUPER HERITAGE EDITION
3600 TX SUPER HERITAGE EDITION
- Highest useful power : 42.5 HP
- 8F+2R, 8F+8R* & 16F+4R (SpeedTech)* Gearbox
- Eptraa PTO
- Straight Axle Planetry Drive
- HP Hydrualics with 1800 kg Lifting capacity
- Independent Lever for PTO Clutch
- Paddy Special Double Metal Face Sealing*
- Fully Constant Mesh AFD
- Potato/Onion's track width - 48"
- 4WD MHD axle*
*Optional
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
3600 TX SUPER HERITAGE EDITION 4WD
Engine Power
35.1kW (47 HP)
Rated RPM
3600 TX SUPER HERITAGE EDITION 2WD
Engine Power
35.1kW (47 HP)
Rated RPM
2100
Technical specifications
| 3600 TX SUPER HERITAGE EDITION 4WD | 3600 TX SUPER HERITAGE EDITION 2WD | |
| Engine | ||
| Engine Model | FPT 8035.05D.943 | FPT 8035.05D.943 |
| Engine Type | Naturally Aspirated | Naturally Aspirated |
| Engine Power | 35.1kW (47 HP) | 35.1kW (47 HP) |
| Rated RPM | 2100 | 2100 |
| Air Cleaner | ||
| Air Cleaner Type | Oil bath type with Pre-cleaner | Oil bath type with Pre-cleaner |
| Transmission | ||
| Clutch | Double Clutch with IPTO lever* | Double/Single Clutch with IPTO lever* |
| Type | Constant Mesh AFD Side Shift | Constant Mesh AFD Side Shift |
| Gear Box | 8F+8R Synchro Shuttle/16F+4R* | 8F+2R, 8F+8R* & 16F+4R* |
| PTO | ||
| PTO Type | Eptraa PTO - 540S, 540E*, Reverse PTO & GSPTO | Eptraa PTO - 540S, 540E*, Reverse PTO & GSPTO |
| PTO HP | 43 HP (32.06 kW) | 43 HP (32.06 kW) |
| Hydraulics | ||
| Lift Capacity | 1800 Kg High Precision Hydraulic | 1800 Kg High Precision Hydraulic |
| Lift-O-Matic | Yes | Yes |
| Rear Axle | ||
| Rear Axle Type | Straight Axle Planetary Drive | Straight Axle Planetary Drive |
| Brakes | ||
| Brake Type | Oil Immersed Multi Disc Brake | Oil Immersed Multi Disc Brake |
| Steering | ||
| Information | Power Steering | Power Steering |
| Tyre | ||
| Front | 9.5 in x 24 in (241.3 mm x 609.6 mm) - MHD Axle, 8.3 in x 20 in (210.82 mm x 508 mm) - STS Axle | 6.5 in x 16 in (165.1 mm x 406.4 mm), 7.5 in x 16 in (190.5 mm x 406.4 mm)*, 6 in x 16 in ( 152.4 mm x 406.4 mm )* |
| Rear | 14.9 in x 28 in (378.46 mm x 711.2 mm) | 14.9 in x 28 in (378.46 mm x 711.2 mm), 13.6 in x 28 in ( 345.44 mm x 711.2 mm )* |
| Electricals | ||
| Battery & Alternator | 88 Ah & 35 Amp | 88 Ah & 35 Amp |
| Dimension | ||
| Overall Length (mm) | 3470 | 3490 |
| Width (mm) | 1810 | 1800 |
| Height (mm) | 2430 (2510 with ROPS + Canopy) | 2350 |
| Wheelbase (mm) | 2005 | 2104 |
| Ground Clearance (mm) | 370 | 430 |
| Weight (kg) | 2210 | 1965 |
| Fuel Tank Capacity (L) | 55 | 55 |
| Additional Features | ||
| Information | Heavy Duty Front Axle Support, Deluxe Driver Seat, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform, Polymer Fuel Tank, Paddy Special - Double Metal Face Sealing | Heavy Duty Front Axle Support, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform,Polymer Fuel Tank |
| Optional Features | ||
| Information | ROPS with Canopy, Economy PTO, Stabilizer Bar, 55kg FWC, Stabilizer Bar, Remote Valve | Speedtech 16F+4R, Economy PTO, Synchro Shuttle 8F*8R, Remote Valve, 90 kg HD Front Bumper, 55kg FWC, Potato Special Axle 48" & Paddy Special - Double Metal Face Sealing, Deluxe Driver Seat |
