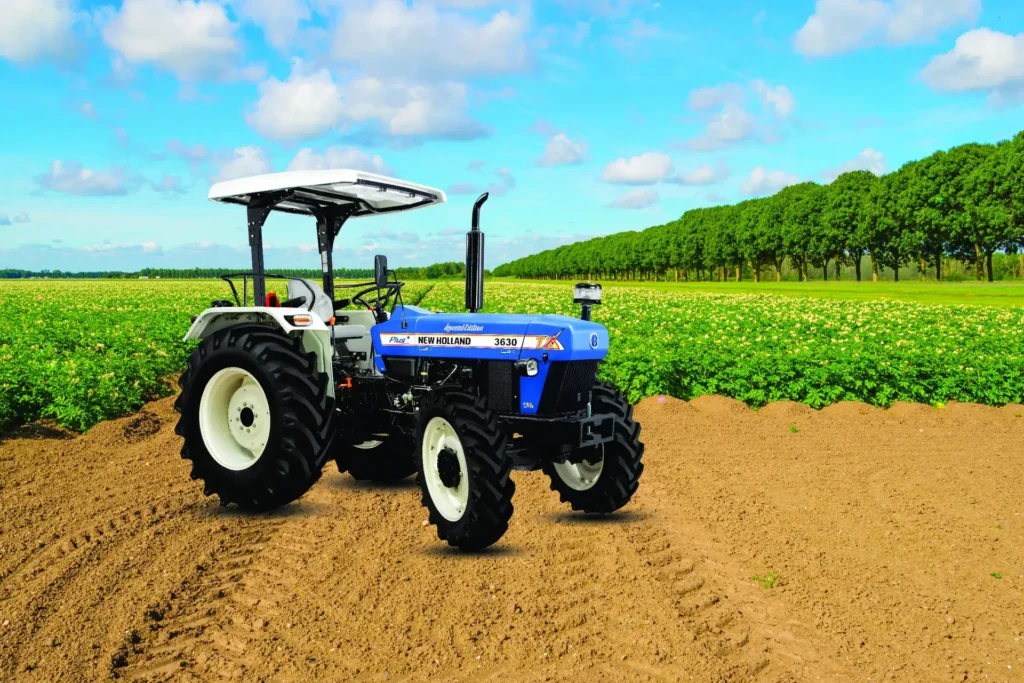

3630 TX SPECIAL EDITION
Your Special Edition is even more Special now!
3630 TX SPECIAL EDITION
• FPT S8000 Engine
• Double Clutch with Independent PTO Lever
• 12F+3R UG, 12F+3R Creeper*, 8F+2R UG* Gearbox
• Sensomatic24 Hydraulic lift with 24 Sensing points
• 2000 Kg, 1700 Kg* lift capacity with Sensomatic24 Hydraulics
• Lift-O-Matic with Height Limiter
• DRC valve & Isolator valve
• ROPS & Fiber Canopy
• Clear lens Headlamp with DRL Signature Light
• LED Fender Lamp
*Optional
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
3630 TX Plus Special Edition 2WD
Engine Model
FPT S8000 series
Engine Power
36.94 kW (49.5 HP)
3630 TX Plus Special Edition 4WD
Engine Model
FPT S8000 series
Engine Power
36.94 kW (49.5 HP)
Technical specifications
| 3630 TX Plus Special Edition 2WD | 3630 TX Plus Special Edition 4WD | |||
| Engine | ||||
| Engine Model | FPT S8000 series | FPT S8000 series | ||
| Engine Type | Rotary FIP with Turbocharger | Rotary FIP with Turbocharger | ||
| Engine Power | 36.94 kW (49.5 HP) | 36.94 kW (49.5 HP) | ||
| Rated RPM | 2100 | 2100 | ||
| Air Cleaner | ||||
| Air Cleaner Type | Dry Type Air Cleaner | Dry Type Air Cleaner | ||
| Transmission | ||||
| Clutch | Double Clutch with Independent PTO Clutch Lever | Double Clutch with Independent PTO Clutch Lever | ||
| Gear Box | 8F+2R/12F+3R Creeper*/12F+3R UG*, Constant Mesh/Partial Synchro Mesh | 8F+2R/12F+3R Creeper*/12F+3R UG*, Constant Mesh/Partial Synchro Mesh | ||
| PTO | ||||
| PTO Type | 540 + GSPTO/ RPTO (RPTO with UG Gear Box Only) | 540 + GSPTO/ RPTO (RPTO with UG Gear Box Only) | ||
| PTO HP | 46 HP (34.3 kW) | 46 HP (34.3 kW) | ||
| Hydraulics | ||||
| Lift Capacity | Sensomatic24 Hydraulic (1700/2000* kg) | Sensomatic24 Hydraulic (1700/2000* kg) | ||
| Lift-O-Matic with DRC & Isolator Valve | Yes | Yes | ||
| Rear Axle | ||||
| Rear Axle Type | Outboard Reduction | Outboard Reduction | ||
| Brakes | ||||
| Brake Type | Real Oil Immersed Multi Disk Brake | Real Oil Immersed Multi Disk Brake | ||
| Steering | ||||
| Information | Power Steering | Power Steering | ||
| Tyre | ||||
| Front | 7.5 in x 16 in (190.5 mm x 406.4 mm) | 9.5 in x 24 in (241.3 mm x 609.6 mm) | ||
| Rear | 16.9 in x 28 in (429.26 mm x 711.2 mm) | 16.9 in x 28 in (429.26 mm x 711.2 mm) | ||
| Electricals | ||||
| Information | 88 Ah Battery & 45 Amp Alternator | 88 Ah Battery & 45 Amp Alternator | ||
| Dimension | ||||
| Overall Length (mm) | 3700 | 3700 | ||
| Width (mm) | 1960 | 1960 | ||
| Height (mm) | 2280 | 2380 | ||
| Wheelbase (mm) | 2040 | 1985 | ||
| Ground Clearance (mm) | 505 | 390 | ||
| Weight (kg) | 2195 | 2495 | ||
| Fuel Tank Capacity (L) | 60 | 60 | ||
| Factory Fitted Options | ||||
| Information | Clear-lens Head Lamp with DRL, LED Fender Lamps, Softek Clutch with Safety lock, 55 kg Front Weight Carrier, Lift-O-matic with Height Limiter, Potato Special Axle 48", ROPS with Fiber Canopy,Remote Valve, Double Metal Face Sealing | Clear-lens Head Lamp with DRL, LED Fender Lamps, Softek Clutch with Safety lock, 55 kg Front Weight Carrier, Lift-O-matic with Height Limiter, Potato Special Axle 48", ROPS with Fiber Canopy,Remote Valve, Double Metal Face Sealing | ||
| *These are optional | ||||
