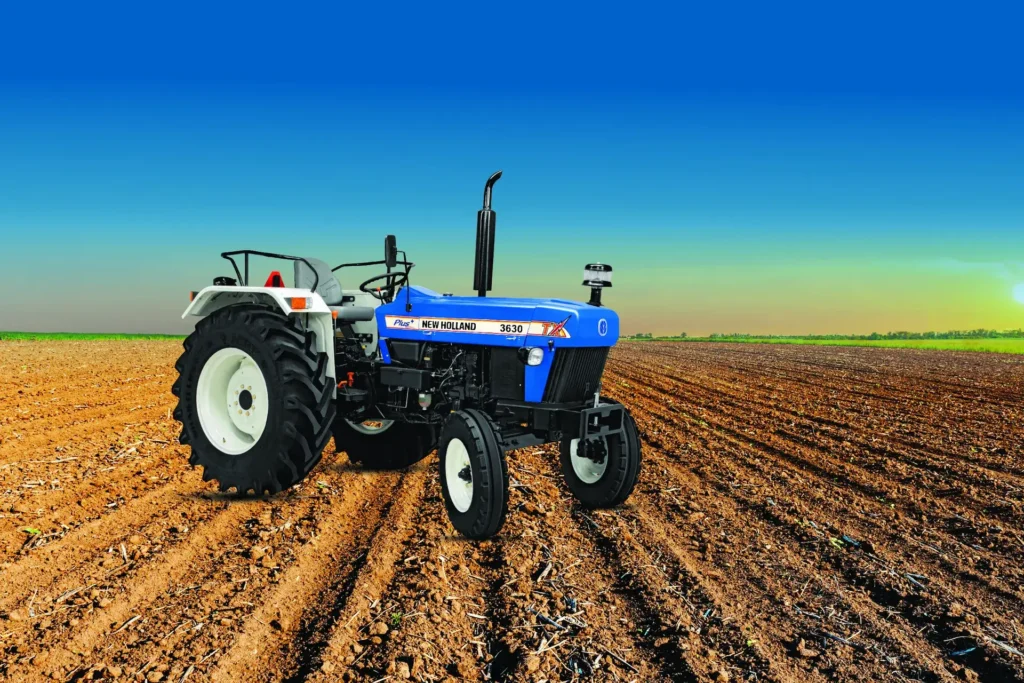

3630 TX SUPER
Asli Hero Trusts the Legacy!
3630 TX SUPER
• FPT S8000 Engine
• Double Clutch with Independent PTO Lever
• 8F+2R/12F+3R Creeper* Gearbox
• Sensomatic24 Hydraulic lift with 24 Sensing points
• 1700 Kg lifting capacity with Assist RAM
• Lift-O-Matic with Height Limiter
• DRC valve & Isolator valve
*Optional
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
3630 TX Super
Engine Model
FPT S8000 series
Engine Power
36.94 kW (49.5 HP)
Technical specifications
| 3630 TX Super | |
| Engine | |
| Engine Model | FPT S8000 series |
| Engine Type | Naturally Aspirated with Rotary FIP |
| Engine Power | 36.94 kW (49.5 HP) |
| Rated RPM | 2500 |
| Air Cleaner | |
| Air Cleaner Type | Oil Bath Type with Pre-Cleaner |
| Transmission | |
| Clutch | Double Clutch with Independent PTO Clutch Lever |
| Gear Box | 8F+2R Constant Mesh |
| PTO | |
| PTO Type | 540 + GSPTO |
| PTO HP | 46 HP (34.3 kW) |
| Hydraulics | |
| Lift Capacity | Sensomatic24 Hydraulic 1700 |
| Lift-O-Matic with DRC & Isolator Valve | Yes |
| Rear Axle | |
| Rear Axle Type | Outboard Reduction |
| Brakes | |
| Brake Type | Real Oil Immersed Multi Disk Brake |
| Steering | |
| Information | Power Steering |
| Tyre | |
| Front | 7.5 in x 16 in (190.5 mm x 406.4 mm) |
| Rear | 16.9 in x 28 in (429.26 mm x 711.2 mm) |
| Electricals | |
| Information | 88 Ah Battery & 45 Amp Alternator |
| Dimension | |
| Overall Length (mm) | 3450 |
| Width (mm) | 1815 |
| Height (mm) | 2375 |
| Wheelbase (mm) | 2045 |
| Ground Clearance (mm) | 445 |
| Weight (kg) | 2060 |
| Fuel Tank Capacity (L) | 60 |
| Factory Fitted Options | |
| Information | Softek Clutch with Safety lock, 55 kg Front Weight Carrier, Lift-O-matic with Height Limiter , Remote Valve & Double Metal Face Sealing |
