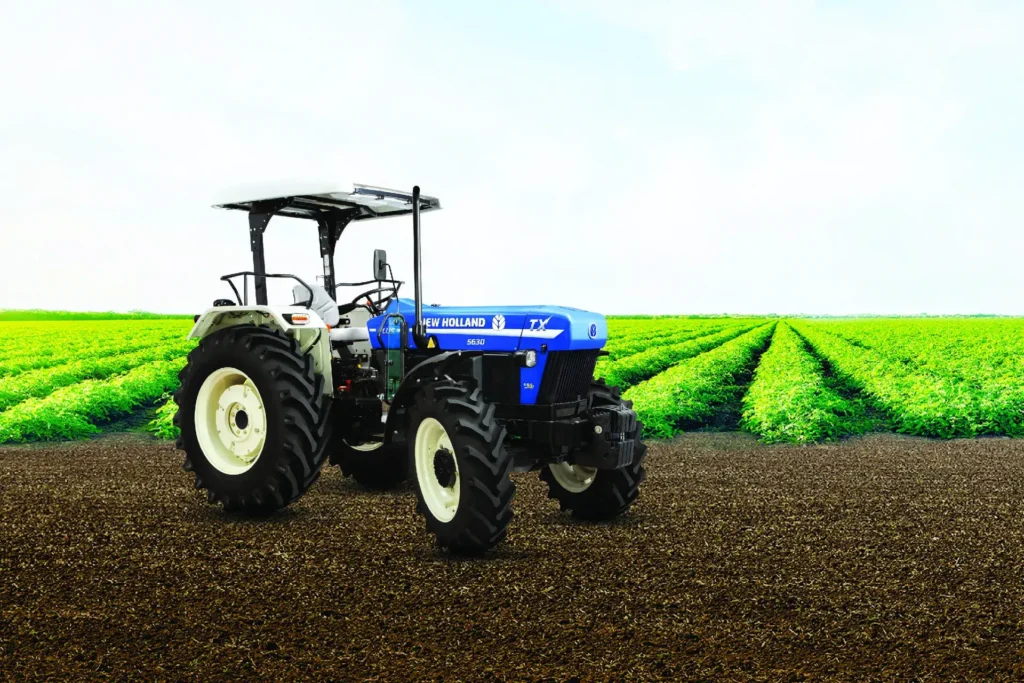

5630 TX PLUS TREM-IV
Asli Hero Trusts the Legacy!
5630 TX PLUS TREM-IV
- FPT HPCR TREM Stage IV Engine 75 HP Category
- Multiple Engine modes
- 69 HP PTO Power
- Double Clutch with Independent Clutch Lever
- 540, RPTO/GSPTO
- 2000 Kg with Assist RAM Hydraulics Lifting Capacity
- 12F+3R UG /12F+3R Creeper Gearbox
- Sensomatic24 with 24 sensing points
- Lift-O-Matic with Height Limiter
- DRC valve & Isolator valve
- Enhanced Ergonomic & Comfort
- ROPS & Canopy
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
5630 TX Plus TREM-IV 2WD
Engine Model
FPT S8000 series 12 Valve HPCR Engine
Engine Power
55 kW (75 HP Cat.)
5630 TX Plus TREM-IV 4WD
Engine Model
FPT S8000 series 12 Valve HPCR Engine
Engine Power
55 kW (75 HP Cat.)
Technical specifications
| 5630 TX Plus TREM-IV 2WD | 5630 TX Plus TREM-IV 4WD | |
| Engine | ||
| Engine Model | FPT S8000 series 12 Valve HPCR Engine | FPT S8000 series 12 Valve HPCR Engine |
| Engine Type | High Pressure Common Rail (TREM IV) | High Pressure Common Rail (TREM IV) |
| Engine Power | 55 kW (75 HP Cat.) | 55 kW (75 HP Cat.) |
| Rated RPM | 2300 | 2300 |
| Air Cleaner | ||
| Air Cleaner Type | 8 inch (0.20 m) Dual Element, Dry Type | 8 inch (0.20 m) Dual Element, Dry Type |
| Transmission | ||
| Clutch | Double Clutch with Independent Clutch Lever | Double Clutch with Independent Clutch Lever |
| Gear Box | 12F+3R Creeper*/12F+3R UG*, Partial Synchro Mesh | 12F+3R Creeper*/12F+3R UG*, Partial Synchro Mesh |
| PTO | ||
| PTO Type | 540 + GSPTO/ RPTO (RPTO with UG Gear Box Only) | 540 + GSPTO/ RPTO (RPTO with UG Gear Box Only) |
| PTO HP | 69 HP (51.45 kW) | 69 HP (51.45 kW) |
| Hydraulics | ||
| Lift Capacity | Sensomatic24 Hydraulic with 2000 Kg Lift capacity | Sensomatic24 Hydraulic with 2000 Kg Lift capacity |
| Lift-O-Matic Height Limiter with DRC & Isolator Valve | Yes | Yes |
| Rear Axle | ||
| Rear Axle Type | Heavy Duty Hub Reduction | Heavy Duty Hub Reduction |
| Brakes | ||
| Brake Type | Oil Immersed Multi Disk Brake | Oil Immersed Multi Disk Brake |
| Steering | ||
| Information | Power Steering | Power Steering |
| Tyre | ||
| Front | 6.5 in x 20 in (165.1 mm x 508 mm), 7.5 in x 16 in (190.5 mm x 406.4 mm)* | 12.4 in x 24 in (314.96 mm x 609.6 mm) |
| Rear | 18.4 in x 30 in (467.36 mm x 762 mm) | 18.4 in x 30 in (467.36 mm x 762 mm) |
| Electricals | ||
| Information | 100 Ah Battery & 55 Amp Alternator | 100 Ah Battery & 55 Amp Alternator |
| Dimension | ||
| Overall Length (mm) | 3780 | 3780 |
| Width (mm) | 2000 | 2000 |
| Height (mm) | 2600 | 2600 |
| Wheelbase (mm) | 2065 | 2045 |
| Ground Clearance (mm) | 530 | 435 |
| Weight (kg) | 2635 | 2835 |
| Fuel Tank Capacity (L) | 70 | 70 |
| Additional Features | ||
| Information | Multiple Engine Modes, DRL, Telescopic Stabilizer | Multiple Engine Modes, DRL, Telescopic Stabilizer |
| Optional Features | ||
| Information | "Remote Valve upto 4 Ports, Swinging Drawbar, ROPS with Canopy, Front Fender" | "Remote Valve upto 4 Ports, Swinging Drawbar, ROPS with Canopy, Front Fender" |
