PULL-TYPE FORAGE HARVESTER
THE BEST IN HIGH CAPACITY AND CHOP QUALITY
PULL-TYPE FORAGE HARVESTER
BEST IN HIGH CAPACITY AND CHOP QUALITY

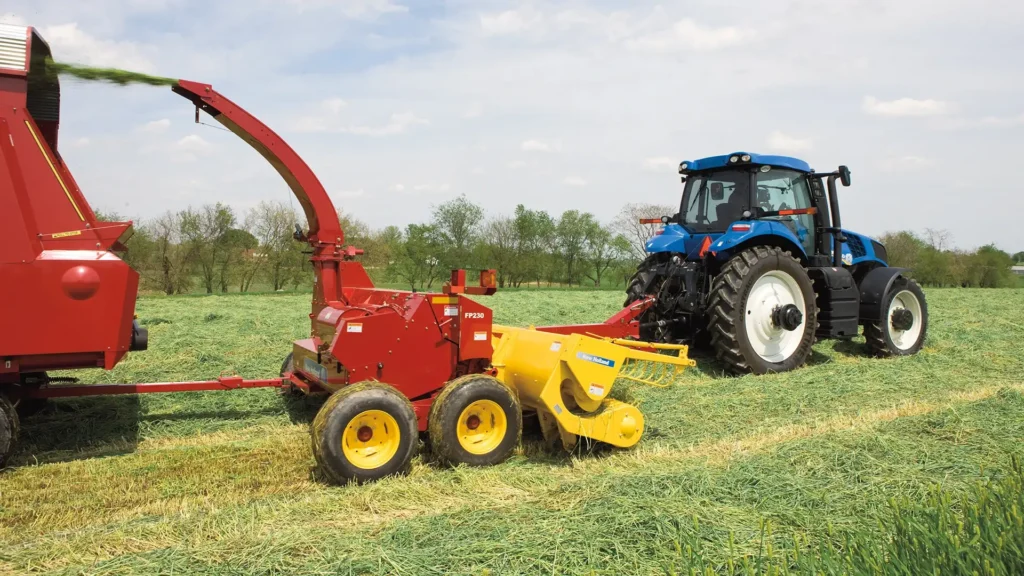

No one builds rugged, high-capacity forage harvesters like New Holland. The best-selling line of pull-type models provides the uniform chopping you're looking for and all the reliability you've come to expect from New Holland.
Ambica Global Trade | New Holland | Jetalpur
Ambica Global Trade | New Holland | Jetalpur
Models
Explore available models
TECHNICAL SPECIFICATIONS
FP240
Length (m)
6.5 m
Width (m)
3.3 m
Technical specifications
| FP240 | |
| Optional CropPro™ Crop Processor | |
| Optional CropPro™ Crop Processor | Optional |
| Construction | Hardened ductile iron, steel shaft |
| Weight (kg) | 231kg |
| Roll width (mm) | 682.6 mm |
| Roll diameter (mm) | 200 mm |
| Roll gap (mm) | 4.8 to 15.9 mm |
| Roll speed | 2650 rpm upper, 2250 rpm lower |
| Technical information | |
| Weight (single axle), (kg) | 2130 |
| Length (m) | 6.5 m |
| Height with standard spout (m) | 3.4 m |
| Width (m) | 3.3 m |
| Number/type of knives | 12 single-edge hardened alloy |
| Cutterhead, type/speed | Cylinder, 850 rpm |
| Cutterhead, diameter (mm) | 533.4 mm |
| Throat opening (mm) | 619.76 mm x 167.6 mm |
| Shearbar | Quick adjust, reversible, hard-faced on vertical and horizontal surfaces |
| Length of cut (mm) | 76.2 to 177.8 mm |
| Blower speed | 1000 rpm |
| Recommended max. tractor hp | 300 hp |
| Minimum power required | 180 PTO hp |
| Knife sharpener | 3" manual, built-in |
| Recutter screens (non processor units) | 6 sizes available |
| Vertical wheel adjustment (mm) | 152 mm |
| Tire sizes, single axle | 14Lx16.1 8PR standard |
| Tire sizes, tandem axle | 11Lx15-15 6PR |
